SC-100 is widely used in the industries of toothpaste, cosmetic, ointment and food, applicable for all kinds of tubes by aluminum foil sealing and screw capping.

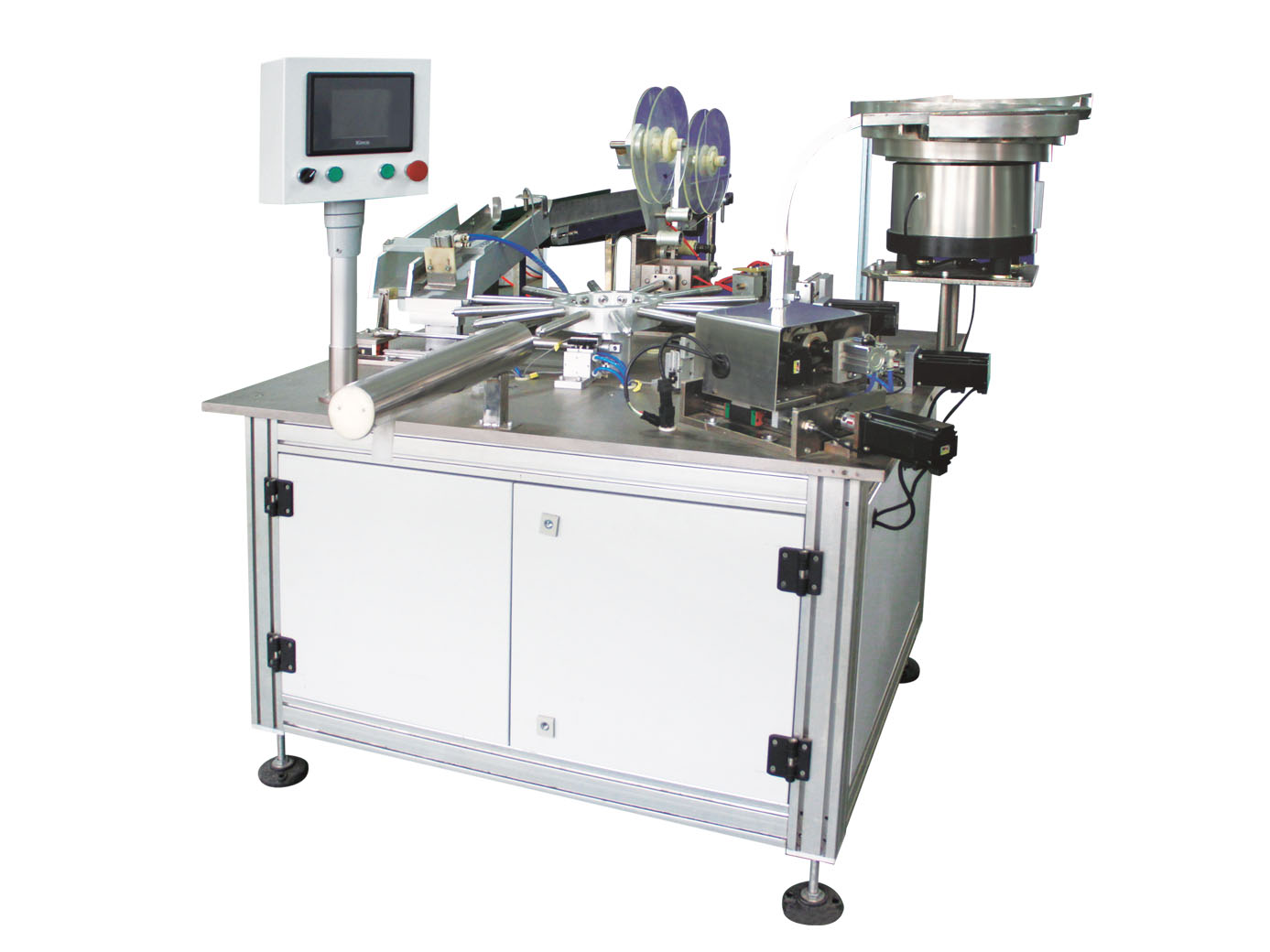

SC-100 is fully automatic, which can automatically load tubes, seal aluminum foil, screw capping and exit tubes, Its controlling part adopts PLC system to make the machine performing more accurately and stably. The rotary valve adopts accuracy cam indexing mechanism with precise and smooth positioning. Heating aluminum foil with special technique makes sealing quickly, nice and fast servo engine driving makes capping adequately screwed, Adopting the frequency conversion,  the user can adjust the speed of rotating engine easily.

High efficiency top sealing unit       Pre-capping unit         Two cap tightening units

Cap feeding unit               Belt feeding system

1.      Easy for operator with the reasonable system layout.

2.      Easy connection to the tube making line with belt feeding system.

3.      Two sealing stations ensure the welding strength of the top seal and easy adjusting.

4.      Two cap tightening units ensure easy contact of the cap torch force with servo driving system.

5.      Easy and fast replacement of cap feeding unit can be used for different type of cap.

Specification:

1.      Output: 55 pcs/min

2.      Air consumption: 6-8bar, 700L/min

3.      Tube diameter: 16-50mm

4.      Tube length: 60-200mm

5.      Machine size: 2790mm*1340mm*1450mm
