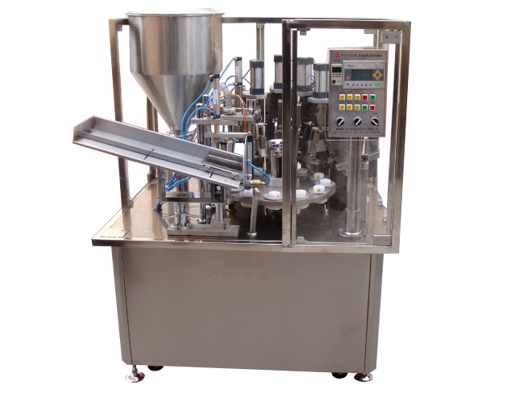

RYFS-50Ⅶ auto filling and sealing machine

RYFS-50 auto filling and sealing machine are widely used in the industries of toothpaste ointment ,food, etc. applicable for sealing all sorts of pastes ,latexes oils etc with various types of aluminum tubes.
    This machine takes the design of 12 work positons and can automatically load tubes, check color codes, fill stuffs, fold seal, stamp odontogram and exit tubes ,the controlling part adopts PLC controlling system to make the machine perform more accurately and stablely; stainless steel material is adopted for the parts contacting with stuffs to endure erosion from acid and alkail; the pipes are made from quick bar clasp which is more conveninent for loading and unloading quickly; stuff valve is easy to rinse thoroughly by using rotary valve ,there are four types of fold sealing available ,the rotary valve adopts accuracy cam indexing mechanism with precise and smooth positioning ,the user can adjust speed with the frequency conversion type speed control to the rotating engine.
Tube box airproof charging hopper ,auto hopper charging and covering mask are available to be equipped.

Basic Technical Parameters:
Power Supply :220VAC/50Hz
Air Exhaustion:0.3meter/min
Air Supply:0.6MPa
Filling Capacity:
   A 5-25ml adjustable;
   B 15-100ml adjustable
Tube Diameter:15-25mm
Tube Length:70-150mm
Measuring Precision:
Production Ability:30-40 pieces/min
