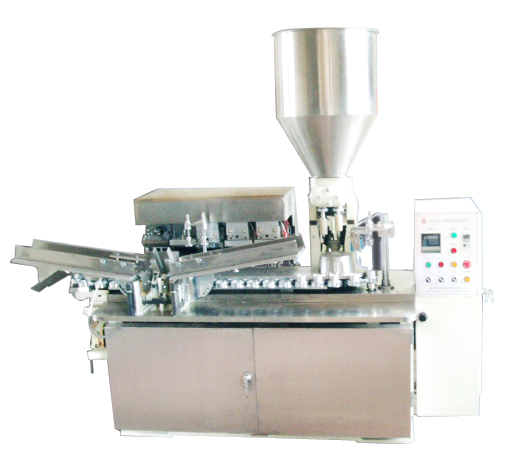

RYFS-80 series of high-speed auto tube filling & sealing machines are widely used in the industries of toothpaste, cosmetic, ointment and food, applicable for sealing of all sorts of pastes, latexes with various types of laminated (ABL/PBL) tubes, plastics tubes and aluminum tubes. This machine is highly automatic, which can automatically load tubes, check color codes, fill, seal, stamp batch numbers and exit tubes. The filling uses cam-driven reciprocating mechanism with precise measurement and high speed. The rotary valve adopts accuracy cam indexing mechanism with percise and smooth positioning. The user can adjust speed with the frequency conversion type speed controller,which adopted on rotating engine. Tube box, airproof hopper charger, auto hooper, delivery worktable are available to be installed. RGFS-80A-2 is similar to 80A, filling with separated color bars.
TYPE |
MODE OF SEALING |
ALUMINIUM BARRIE LAMINATE LAYER |
PLASTIC BARRIE LAMINATE LAYER |
PLASITC TUBE |
ALUMINUM TUBE |
RYFS-80Ⅰ |
OUTER HEATING |
EXCELLENT |
EXCELLENT |
FAVORABLE |
UNFAVORABLE |
RYFS-80Ⅱ |
INNER HEATING |
FAVORABLE |
FAVORABLE |
EXCELLENT |
UNFAVORABLE |
RYFS-80Ⅶ |
FOLD |
UNFAVORABLE |
UNFAVORABLE |
UNFAVORABLE |
EXCELLENT | |
