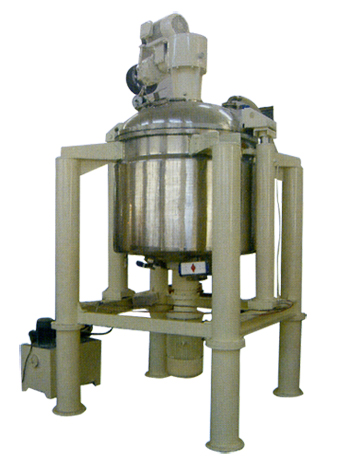

 RYVP series bottom homogeneous & vacuum Paste-making machine is a kind of medium-big size paste-making machine with four columns and double oil cylinder which open hatch from top. The inner primary structure is the combination of bottom high efficiency homogenizer and upper forward/backward strong stirrer. It can mix, stir, homogenize, degas, heat and cool material with greater viscosity under vacuum. It can obtain high quality products according to the national standards.
This series of vaccum paste-making machine has a set of supported techniques and auxiliary equipments, which can make up a semi or full automatic paste-making system. It is the preferred industrialization production equipments of toothpaste, coating, adhesive, etc.
Main techinque parameters:
|
Name |
Unit |
Parameters |
|
Work volume |
L |
4 |
1000 |
1500 |
3000 |
|
Stirring rotate speed |
r.p.m |
0-100 |
8/16 |
7/14 |
6/12 |
|
Power of stirrer |
kw |
0.12 |
5.5/8.5 |
7/11 |
11/14 |
|
Homogenize rotate speed |
r.p.m |
4000 |
1500 |
1500 |
1500 |
|
Power of homogenizer |
kw |
0.60 |
22 |
30 |
45 |
|
Vacuum Pump |
kw |
0.25 |
4 |
7.5 |
7.5 |
|
Hydraulic Pump |
kw |
0.18 |
2.2 |
2.2 |
2.2 |
|
Total power |
kw |
1.15 |
38 |
50.7 |
78.5 |
|
Pressure of compressed air |
Mpa |
|
0.6 |
0.6 |
0.6 |
|
Overall dimension:(L*W*H) |
M |
0.5*0.7*1.1 |
1.9*1.9*4.0 |
2.1*2.1*4.4 |
2.5*2.5*5.8 |
|
Lifting height of tank lid |
MM |
|
950 |
1200 |
1500 |
|
Power |
|
220V,50HZ |
3~380V,50HZ |
|
Complete machine weight |
kg |
150 |
3700 |
4500 |
5800 |
|
