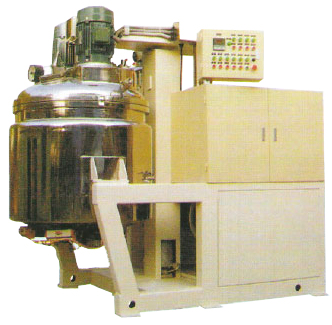

ZG700A vacuum homogenizing machine is the main type of ZG series. It has 3 sets of upper-position type mixers that can be set up for 2 modes: one is frame mode mixing & double high speed dissolver; the other is frame mode mixing, high speed dissolver and homogenizer. It can meet various working procedure requirements of costumers.
ZG700A vacuum homogenizing machine with a vacuum pump and a hydraulic pump has performance of good entirety, easy installation,flexible use and full functions.
ZG700A vacuum homogenizing machine is suitable for medium scale industrial production of toothpaste, cosmetic, ointment, food, etc.
Main Technical Parameters:
|
Working Volume:700L |
Hydraulic pump:Y90s-4 1.5kw |
|
Stirring speed:10-40(80)r.p.m. |
Total power:32kw |
|
Stirring power:4kw |
Pressure air:0.6Mpa |
|
high stirring speed:1000r.p.m. |
Dimensions(L*W*H):1920*3910*3200mm |
|
high speed stirring power:7.5kw |
Lifting height of cauldron lid:1000mm |
|
speed of homogenizer:3000r.p.m. |
Power supply:3~380V, 50Hz |
|
power of homogenizer:15kw |
Total weight of machine:3000kg |
|
Vacuum pump:2sk-1.5P1 4kw |
| |
