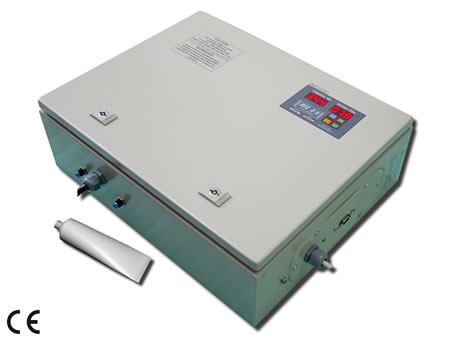

 High Frequency Generators - Series HFG 3-5 and the equipment for them, are used for body and shoulder welding in tube producing machines as well as for sealing of already filled tubes. The generators include inductors and modules for different type of welding and controlling the processes of packing machines.
The HF generators are designed on the basis of power MOSFET transistors and they work in the frequency range 250 – 370 kHz and output power 5kW. HFG 3-5 is designed for welding of laminate tubes, made of ABL (aluminium barrier layer) and PBL (plastic barrier layer) foil. The tubes welding is performed under direct induction heating, when using ABL and indirect, when using PBL.
The generators have an option to control the welding time from 0,01s to 1s by steps 0,01s as well as to control output power from 50 to 100%. There are modifications of generators adjusted to work in continuous mode, too (HFG 3-5C) - for special purposes.
TECHNICAL PARAMETERS
| |
High Frequency Generators - Series HFG 3-5 |
| |
Parameter |
Value |
| 1 |
Supply voltage |
3 x 230 / 400 V ± 10% |
| 2 |
Nominal frequency of the mains |
50 / 60 / Hz ± 2% |
| 3 |
Consumed power |
max. 6 kVA |
| 4 |
HF power at the generator’s output |
max. 5 kW |
| 5 |
Working frequency |
250 kHz to 370 kHz |
| 6 |
Protection degree of generator |
IP54 |
|
7
|
Working mode:
– HFG 3-5 - cycle
- HFG 3-5C - continuous |
switch period 50% max.
100% |
|
8
|
Welding time:
– HFG 3-5
- HFG 3-5C |
0,01s ÷ 1s [steps 0,01s]
continuous welding |
|
9
|
Cooling water:
- flow rate
- pressure
- temperature |
max. 5 l/min
0,4 ÷ 0,5 MPa
288 ÷ 291K |
| 10 |
Dimensions, mm: |
500 x 160 x 400 |
| 11 |
Net weight |
15 kg. |
HFG 3-5 Series are certified and they are in accordance with the European requirements for quality and safety.
The generators for tube welding are supplied with two types of inductors.

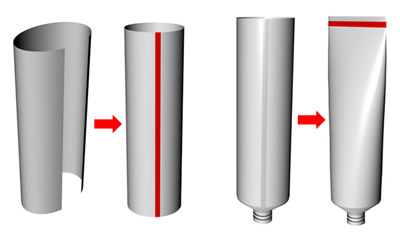

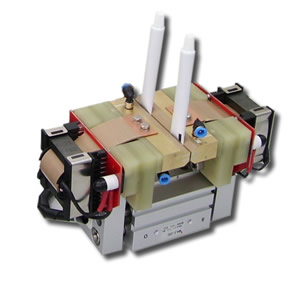

- Inductors for linear weldingwith effective length up to230mm, used for longitudinal welding of tubes or for tube filling machines. Up to 3 tubes can be weldedcross cut at oneand the same time in the tube filling machines.

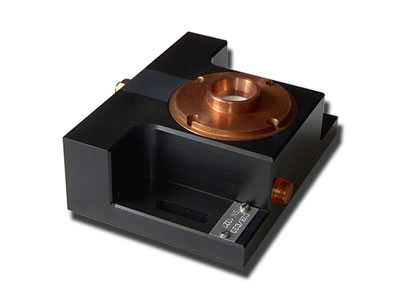

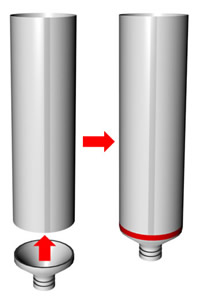

- Inductors for frontal (shoulder) welding of a tube’s shoulder with maximum tube diameter 50mm. There are modifications for round and ellipse shoulders of the tube.

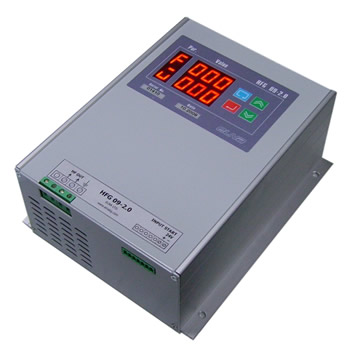

It is possible using a modification of generators from series HFG 09-XX for some tube-filling machines, which has lower power consumption and smaller dimensions:
 High frequency generators - Series HFG 09-XX are used for the top sealing (membrane) on the shoulders for applications that need more power and are applicable for tube welding in tube - filling machines, also. The consumed power for different modifications is from 0,8 up to 2,4 kW.
TECHNICAL PARAMETERS
| |
High Frequency Generators - Series HFG 09-XX* |
| |
Parameter |
Value |
| 1 |
Supply voltage |
230 V ± 10% |
| 2 |
Nominal frequency of the mains |
50 / 60 Hz ± 2% |
|
3
|
Consumed power:
|
HFG 09-0.8: 800 W
HFG 09-1.6: 1600 W
HFG 09-2.0: 2000 W
HFG 09-2.5: 2300 W |
|
4 |
HF output: |
HFG 09-XX:
70-440V / 100-300 KHz |
| 5 |
Working mode: |
cycle |
| 6 |
Dimensions, mm: |
215 х 182 х 90 mm |
| 7 |
Net weight |
2,2 kg. |
|
